Authentication, Security & Secrets Management

This section describes how authentication, authorization, network security, and secret management are handled in the IMS system.

Security architecture diagrams

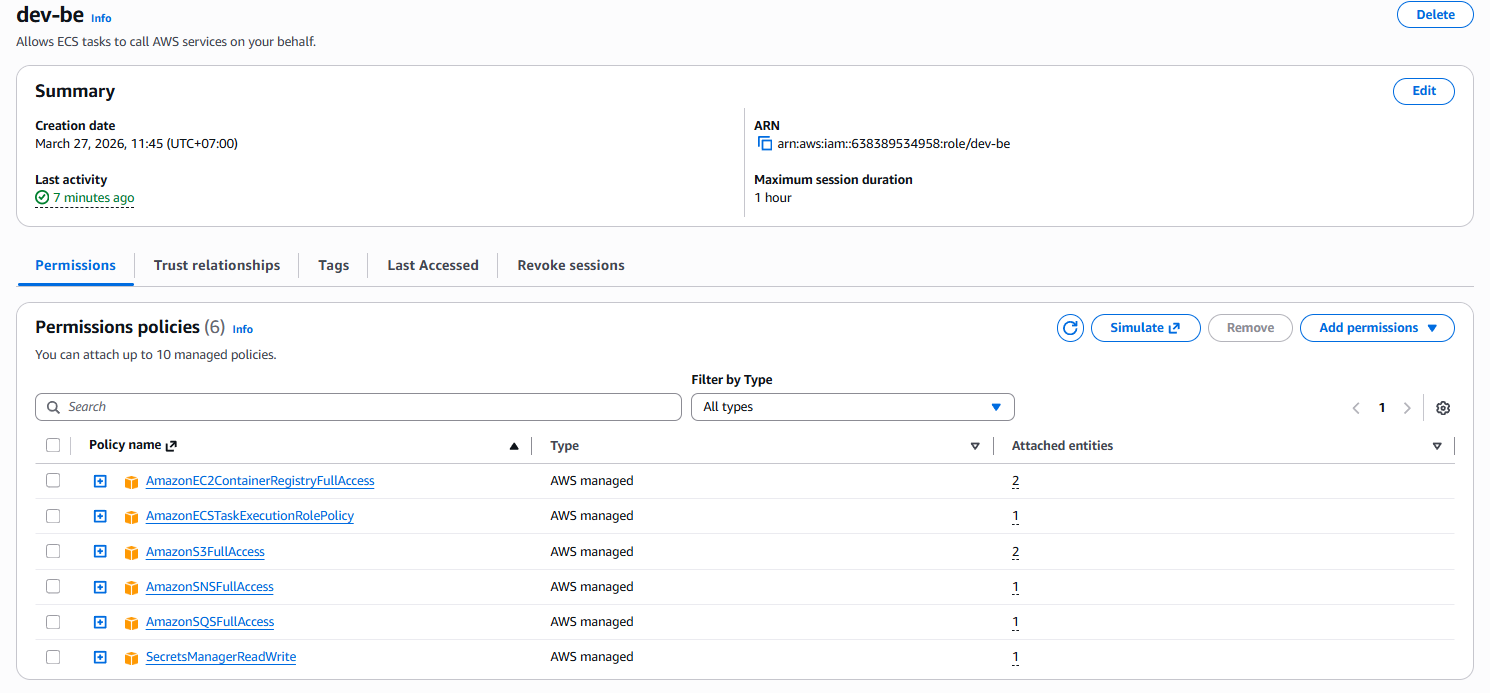

IAM roles and permissions for ECS, CI/CD and SES

Hình IAM cho phần IAM Roles & Permissions trong module 6.6.

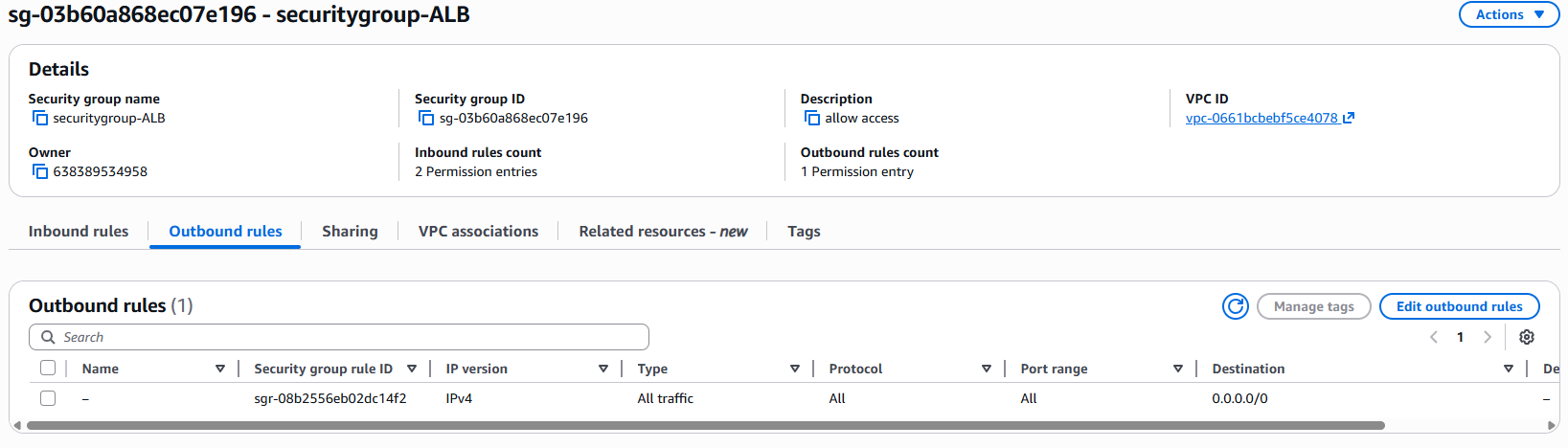

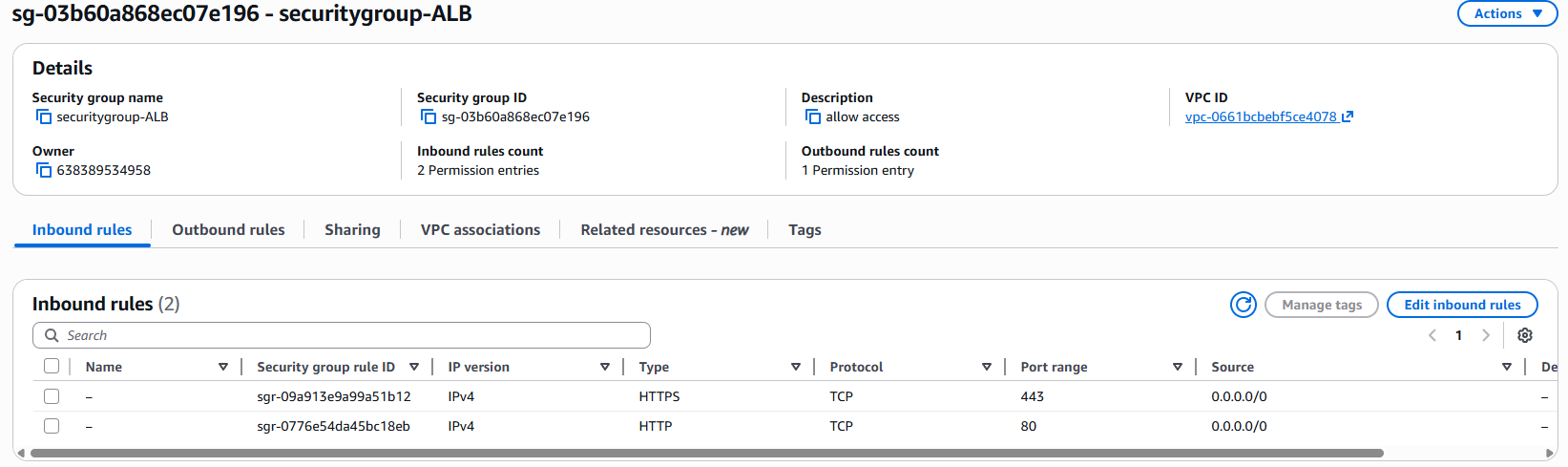

Security group inbound rules for ALB Security group outbound rules for ALB

Hai hình SG‑ALB dùng cho phần Network Security (ALB security group) của module 6.6.

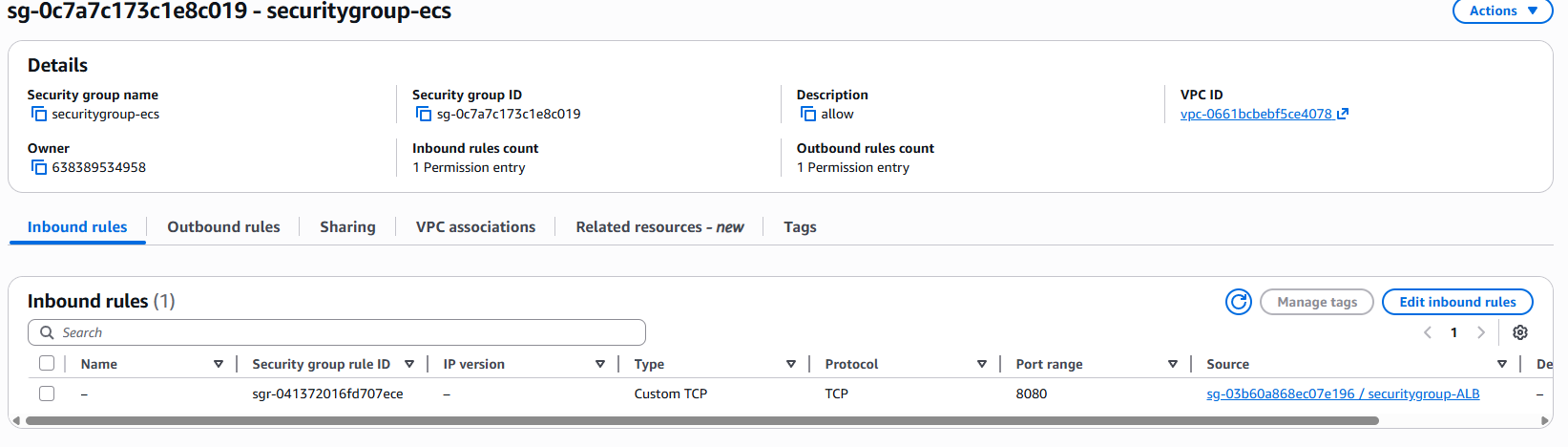

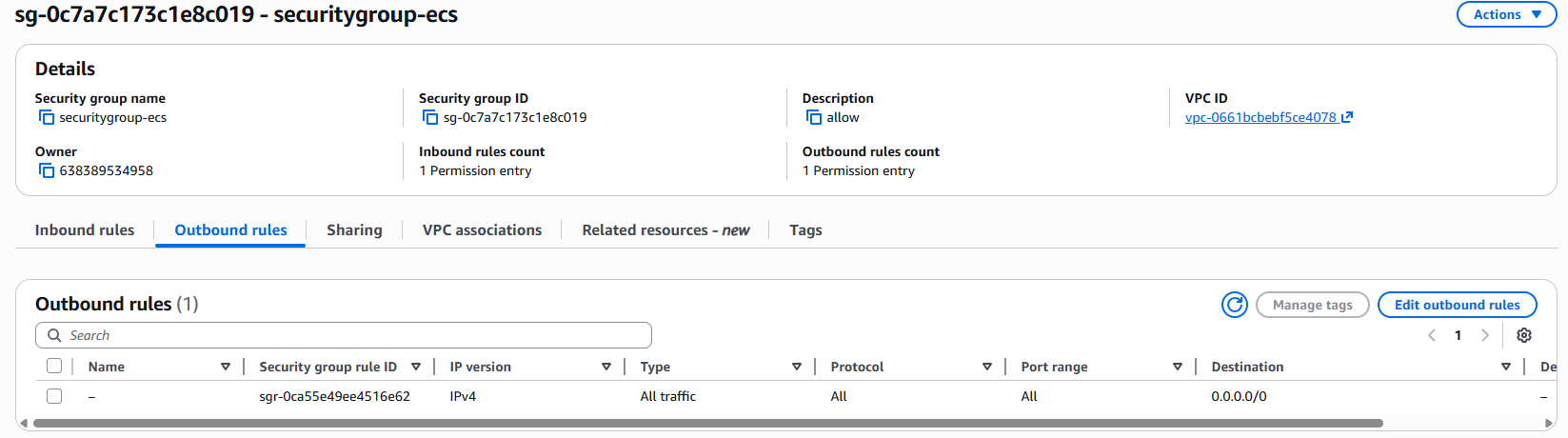

Security group inbound rules for ECS tasks Security group outbound rules for ECS tasks

Hai hình SG‑ECS dùng cho phần Network Security (ECS security group) của module 6.6.

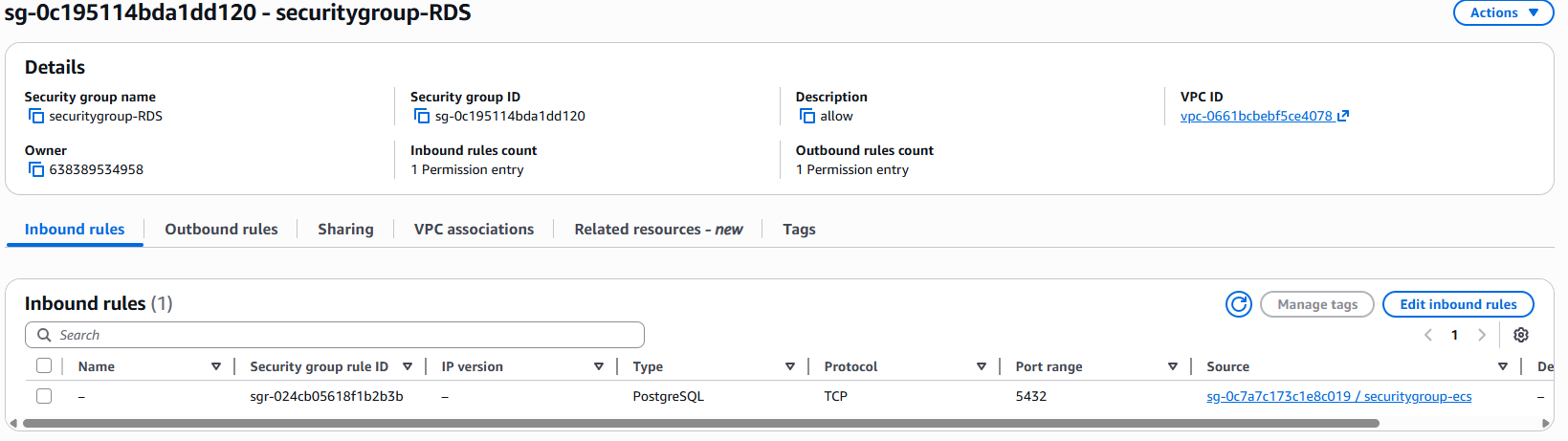

Security group inbound rules for RDS Security group outbound rules for RDS

Hai hình SG‑RDS dùng cho phần Network Security (RDS security group) của module 6.6.

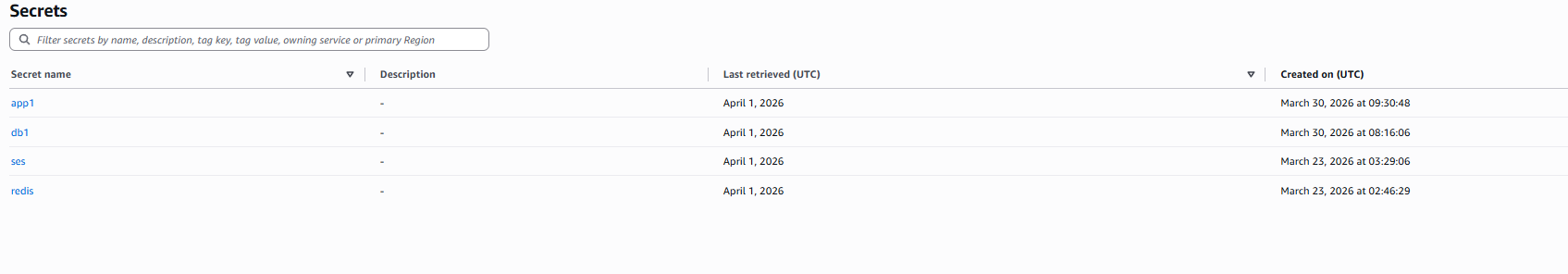

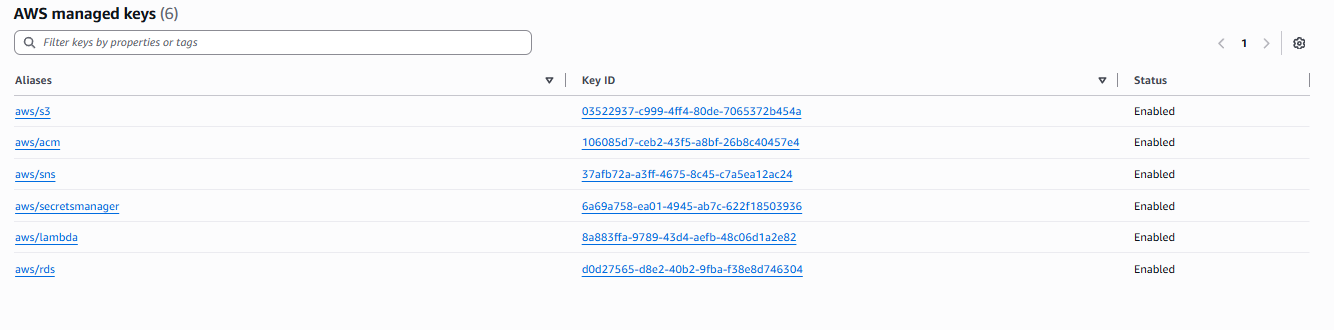

Secrets Manager storing database and SMTP credentials KMS key protecting encrypted secrets

Hai hình Secrets Manager và KMS cho phần Secrets Management & KMS trong module 6.6.

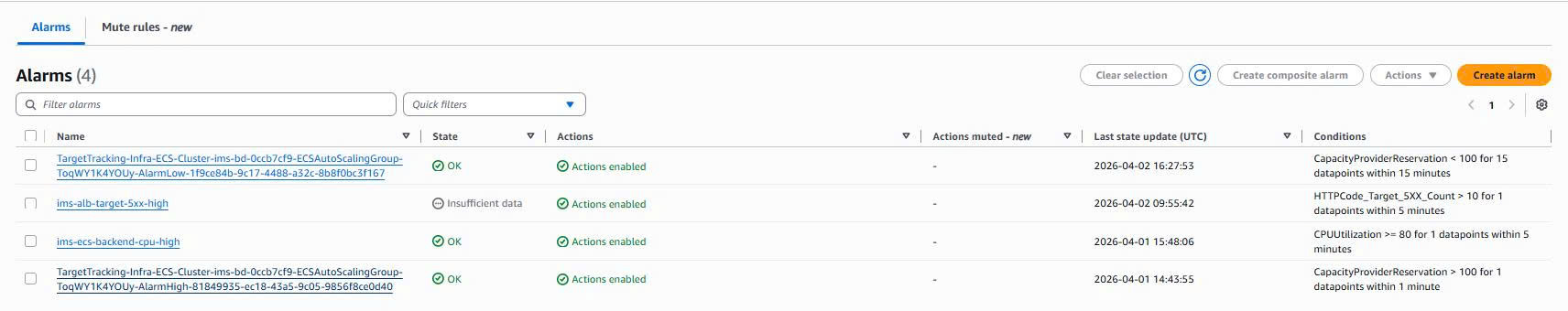

CloudWatch alarm as part of security and monitoring

Hình CloudWatch Alarm dùng chung cho phần Network Security/Monitoring của module 6.6 và liên kết với module 6.7 Observability & CI/CD.

These diagrams show how IAM, security groups, Secrets Manager and KMS are configured to implement least-privilege access and protect sensitive data.

Authentication & Authorization

  • The backend uses Spring Security to protect APIs and enforce role-based access control.
  • Main roles:
    • ADMIN – system administration features.
    • MANAGER – production planning and monitoring.
    • LINE_LEADER – shop-floor task execution.
  • The frontend integrates with the auth APIs via authService and stores tokens client-side.

You can extend the current auth design by integrating Amazon Cognito as the identity provider:

  • User Pool for user management and hosted login.
  • JWT tokens issued by Cognito validated by Spring Boot.
  • Fine-grained access via Cognito groups mapped to application roles.

OTP and email verification

For password reset and account verification, the backend can expose endpoints like:

  • POST /auth/forgot-password – generate a short-lived OTP, send via SES to the user email.
  • POST /auth/verify-otp – validate the OTP and allow password change.

The OTP code and expiry timestamp should be stored server-side (for example in a database table or cache such as Redis) and never embedded directly in JWTs.

Network Security

  • All services run inside a custom VPC.
  • Security Groups restrict traffic:
    • ALB allows inbound HTTP/HTTPS from the internet.
    • ECS tasks accept traffic only from ALB.
    • RDS accepts traffic only from ECS tasks (and admin sources if needed).
  • Private subnets are used for ECS and RDS, public subnets only for ALB and NAT gateways.

IAM Roles & Permissions

IAM is used to give each component just enough access to AWS resources.

ECS roles

  • ECS task execution role (for example ecsTaskExecutionRole-ims-prod):

    • Used by the ECS agent, not by the application code.
    • Pulls container images from ECR.
    • Writes logs to CloudWatch Logs.
    • Typically attaches the managed policy AmazonECSTaskExecutionRolePolicy.

  • ECS task role (for example ecsTaskRole-ims-backend-prod):

    • Used by the Spring Boot backend running inside the task.
    • Has least-privilege access to:
      • S3 – read/write production documents in the dedicated bucket.
      • SQS – send and receive messages for background jobs and events.
      • SNS – publish alert and status messages.
      • SES – send emails if using the AWS SDK instead of SMTP.
      • AWS Secrets Manager – read application secrets at runtime.
      • KMS – decrypt secrets that are encrypted with a customer-managed key.

CI/CD roles

  • CodeBuild / CodePipeline roles:
    • Pull source from CodeCommit/GitHub via CodeConnections.
    • Build the backend JAR and Docker image.
    • Push images to ECR.
    • Update ECS task definitions and services during deployments.
    • Upload build artifacts (for example imagedefinitions.json, frontend bundles) to S3.

IAM user for SES SMTP

For SMTP-based email sending, a dedicated IAM user is used only for SES:

  • Example: ims-ses-smtp-user.
  • Has permission to call ses:SendEmail / ses:SendRawEmail.
  • SMTP credentials generated in the SES console are stored as secrets (not hard-coded) and injected into the application via configuration.

Follow the principle of least privilege and avoid using overly broad *:* policies in production.

Secrets Management & KMS

Use AWS Secrets Manager to store sensitive information such as:

  • Database credentials (RDS username, password).
  • JWT signing keys or OAuth client secrets.
  • SES SMTP / access keys and sender addresses.
  • External AI API keys (if used).

Secrets are encrypted at rest using AWS KMS keys (AWS managed or a customer-managed key such as alias/ims-secrets-key). The ECS task role is allowed to call secretsmanager:GetSecretValue and kms:Decrypt so that the backend can load secrets securely at startup.

In ECS Task Definitions, reference these secrets via:

  • Environment variables sourced from Secrets Manager.
  • Or AWS SDK calls within the application using the task role.

Never hard-code secrets in:

  • Source code.
  • Docker images.
  • Frontend bundles.

By structuring authentication, OTP/email verification, IAM roles, network boundaries, and KMS-encrypted secrets properly, the IMS system can satisfy common security expectations for enterprise workloads.
