5.6 Messaging & Notifications (SQS, SNS, SES)

Messaging & Notifications with SQS, SNS, SES

This section focuses on asynchronous processing and notifications in the IMS system, using Amazon SQS, Amazon SNS, and Amazon SES.

Messaging & notification diagrams

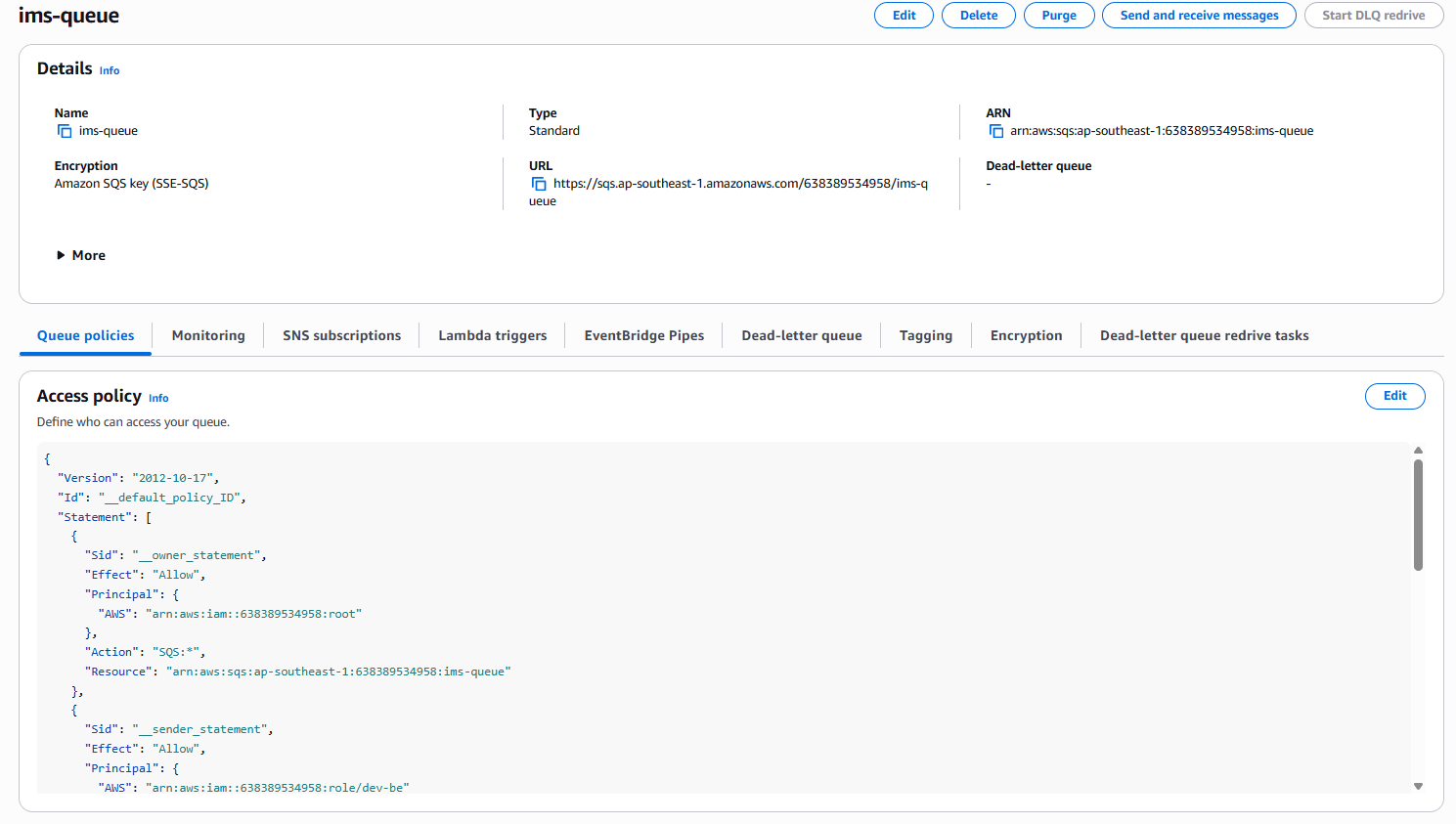

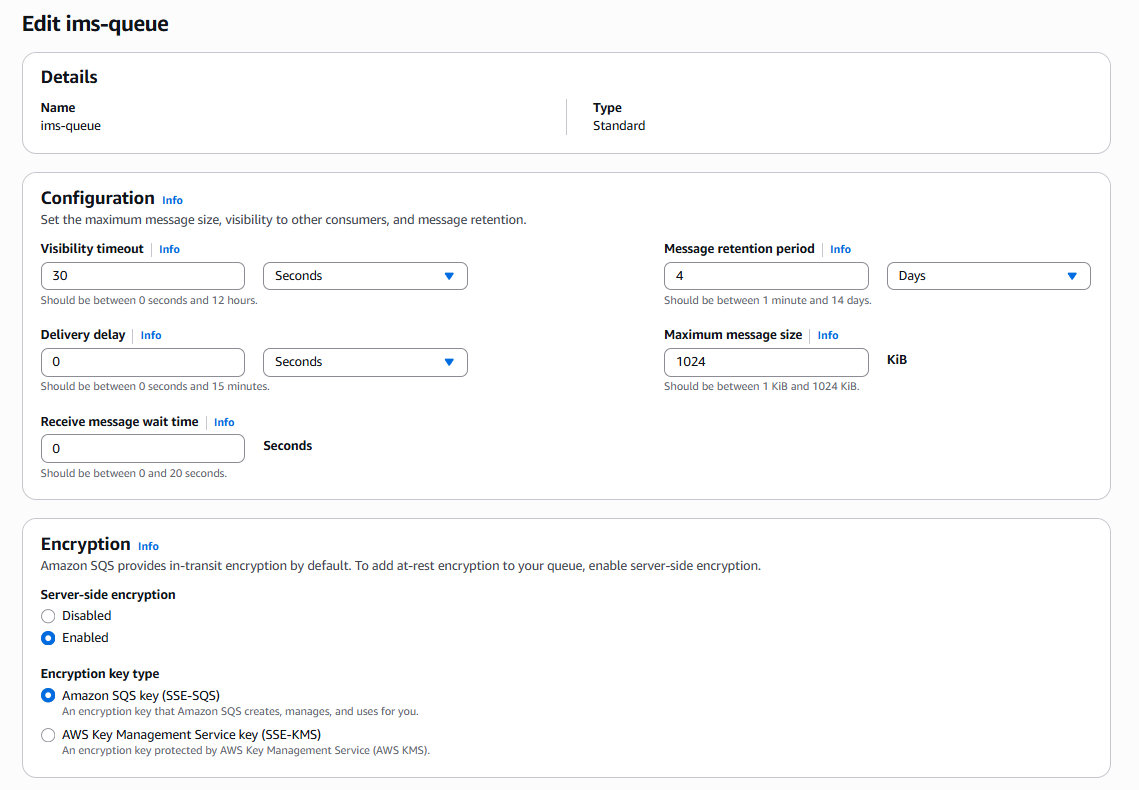

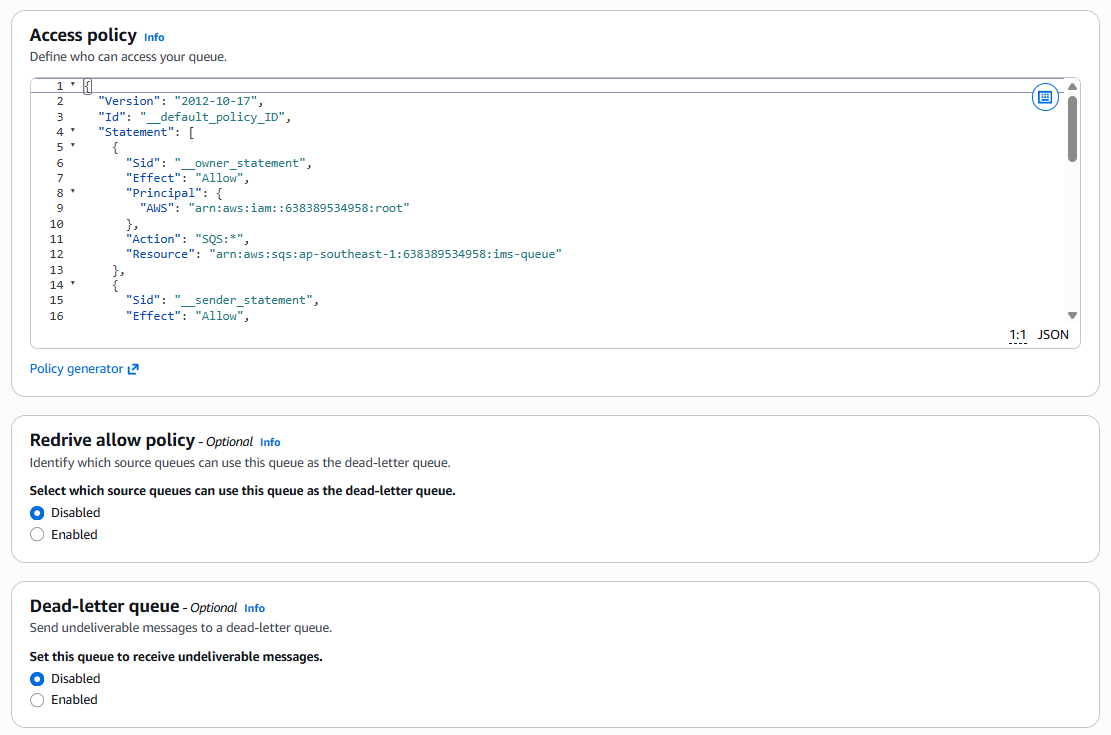

SQS queue configuration for IMS background jobs SQS access policy for producers and consumers Queue details including DLQ configuration

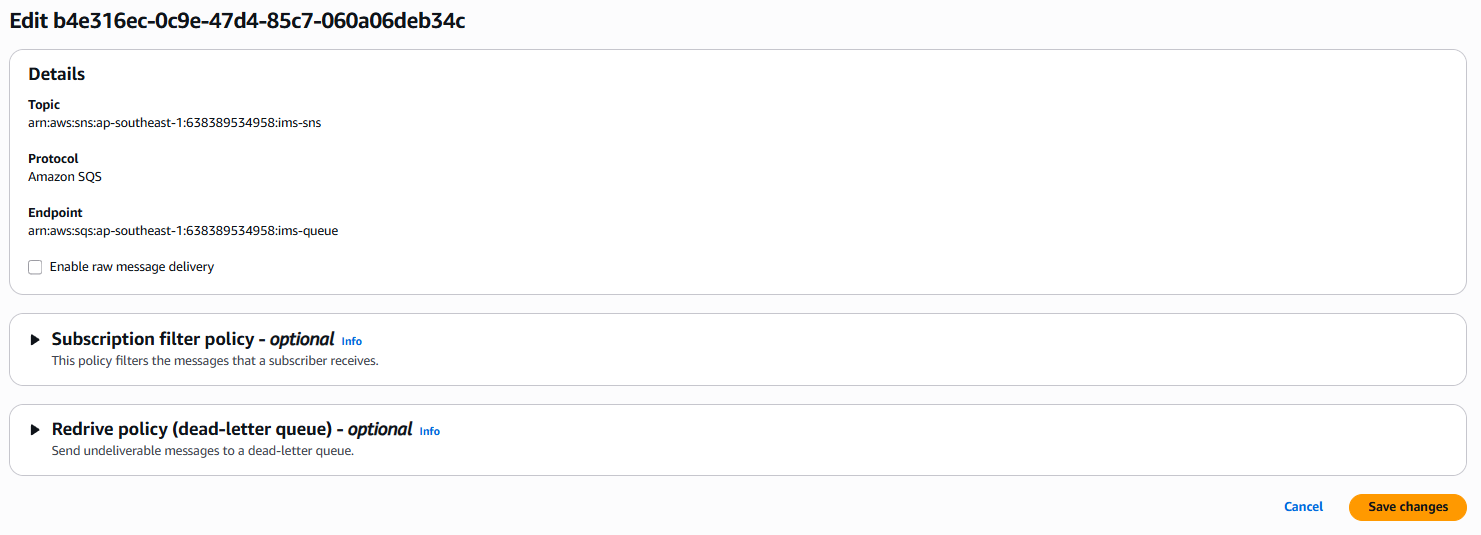

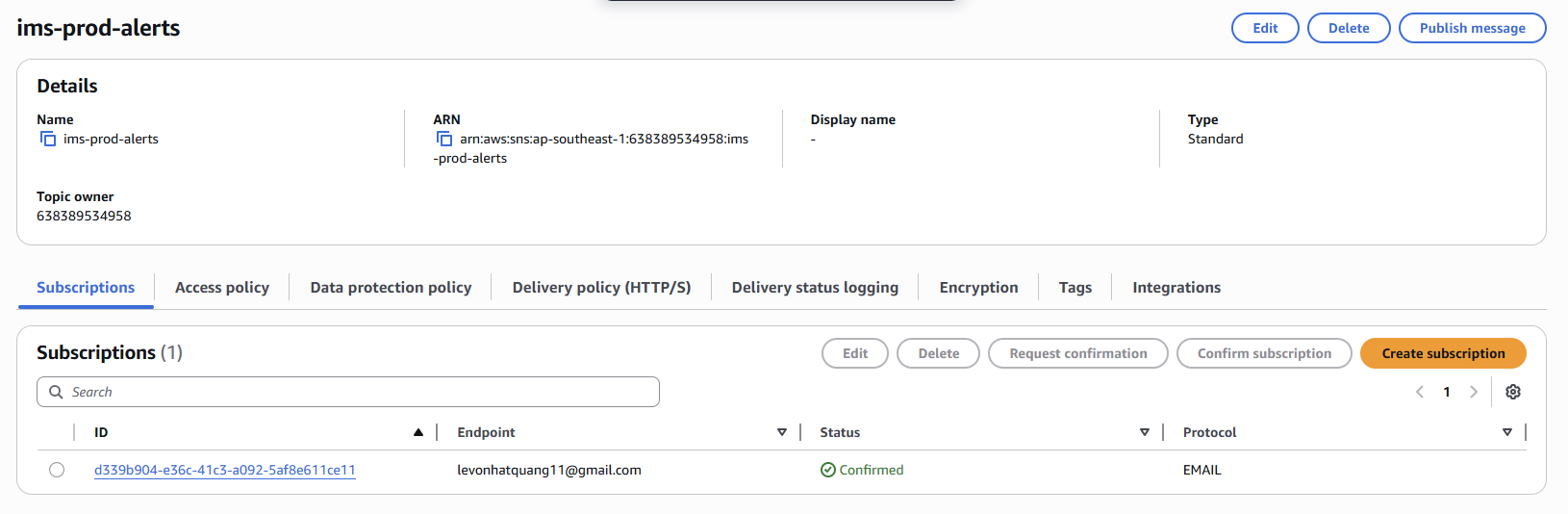

SNS topic used to broadcast production alerts Email alert received from SNS notification

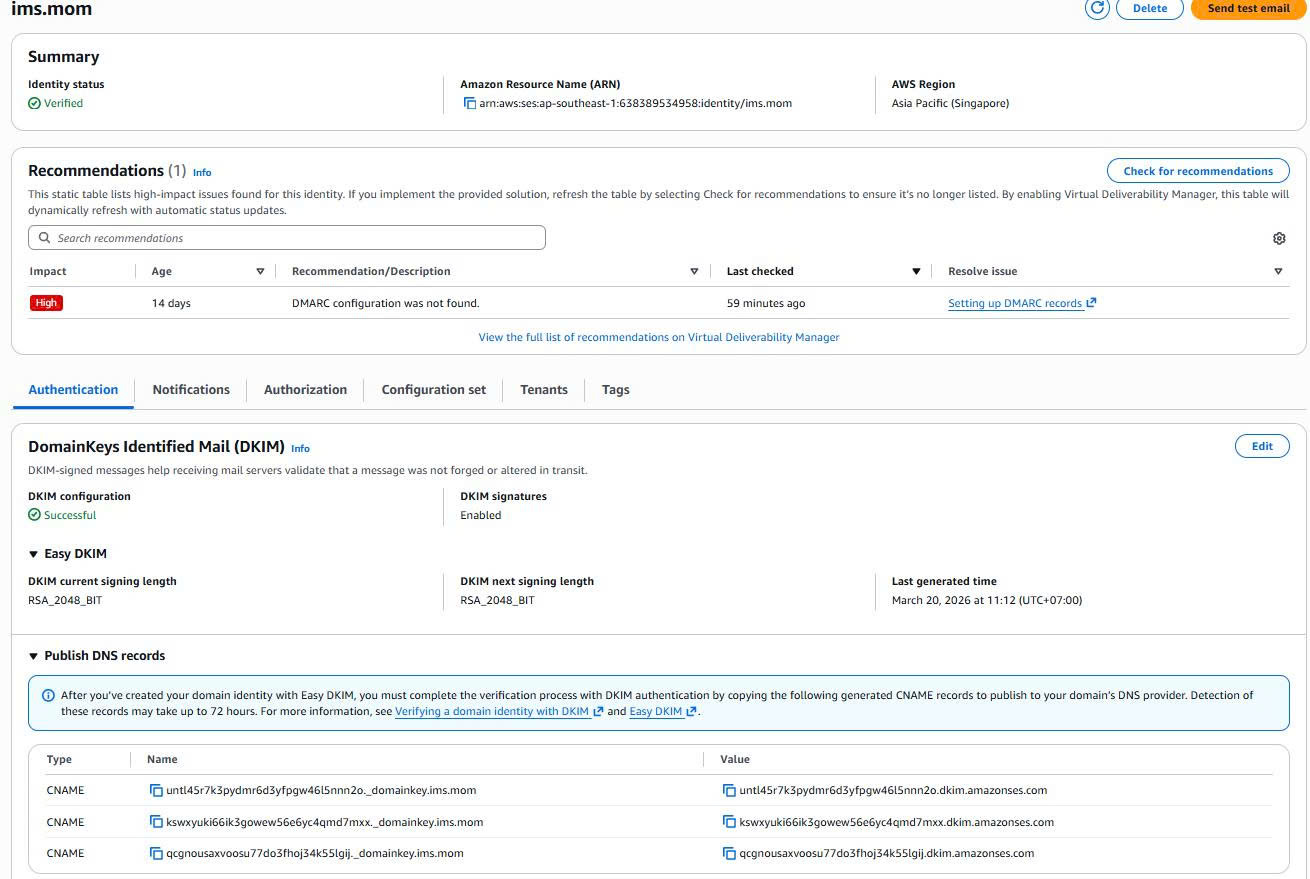

SES configuration for sending OTP and notification emails

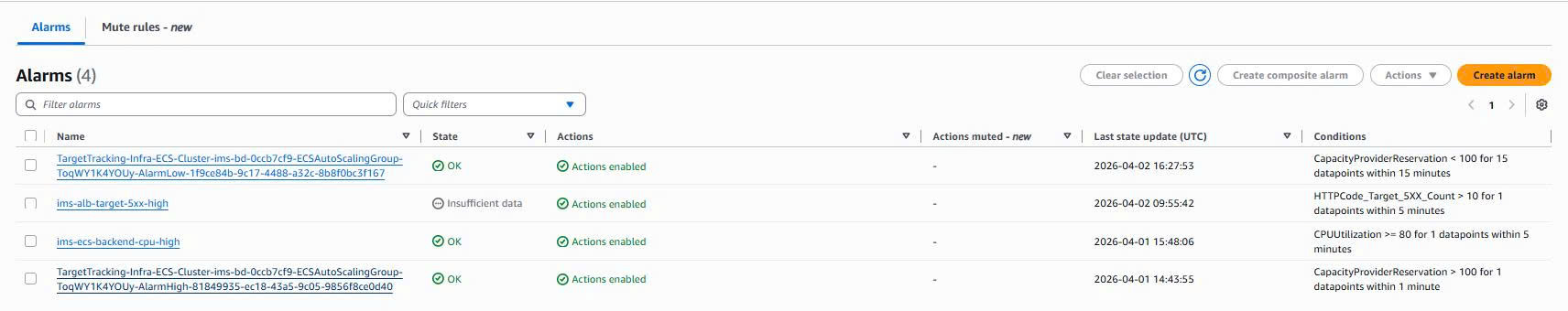

CloudWatch alarm integrated with SNS for infrastructure alerts

These screenshots show how queues, topics, email sending, and alarms are configured to support asynchronous processing and alerting.

Use Cases

  • Queueing background jobs such as:
    • Recalculating production KPIs.
    • Generating daily/weekly production reports.
    • Processing delay or exception events.
  • Fan-out notifications to multiple consumers (e.g., managers, monitoring tools).
  • Sending OTP emails and system notifications (e.g., schedule changes, critical alerts).

Amazon SQS – Background Processing

  1. Create queues for background jobs (e.g., ims-delay-events, ims-report-jobs).
  2. Configure dead-letter queues (DLQ) for failed messages.
  3. In the backend, design services to:
    • Publish messages to SQS when certain events occur (e.g., delay detected).
    • Consume messages from SQS (via scheduled tasks, workers, or ECS services).
  4. Use message attributes to include context (order ID, line, severity, etc.).

Amazon SNS – Alerts & Fan-Out

  1. Create SNS topics (e.g., ims-critical-alerts, ims-status-updates).
  2. Subscribe SQS queues, email addresses, or other endpoints to these topics.
  3. From backend services, publish high-level events to SNS when:
    • Critical production incidents occur.
    • Important threshold alarms are triggered.
  4. Integrate SNS with CloudWatch alarms to receive infrastructure alerts.

Amazon SES – Email OTP & Notifications

  1. Verify domains and email addresses in Amazon SES.
  2. Configure the backend to send emails using SES (for example using an HTML template for OTP or schedule notifications).
  3. Typical flows:
    • Forgot password → backend generates OTP (and expiry) → send via SES → user submits OTP back to API → backend verifies OTP and allows password reset.
    • Manager creates new schedule → system emails line leaders with attached/linked documents or links to the schedule page.
  4. Handle SES sandbox limitations (must verify both sender and recipient in sandbox).
  5. Monitor SES metrics and bounces in CloudWatch / SNS.

By wiring SQS, SNS, and SES together, the IMS system can handle heavy workloads asynchronously and keep users informed about important production events.
