5.3.4 Service Connectivity – ECS, RDS, S3 & Messaging

Finally, you connect AWS services to the VPC so that the application can work end‑to‑end.

What you connect

  • ECS Fargate service in private subnets, fronted by the ALB in public subnets.
  • RDS PostgreSQL in private subnets, reachable only from the ECS security group.
  • Access from ECS tasks to:
    • Amazon ECR to pull container images.
    • Amazon S3 for file storage.
    • Amazon SQS/SNS for background jobs and notifications.
    • Amazon SES for sending OTP and system emails.
    • AWS Secrets Manager to fetch DB credentials and SMTP/SES secrets.

ALB and Target Group

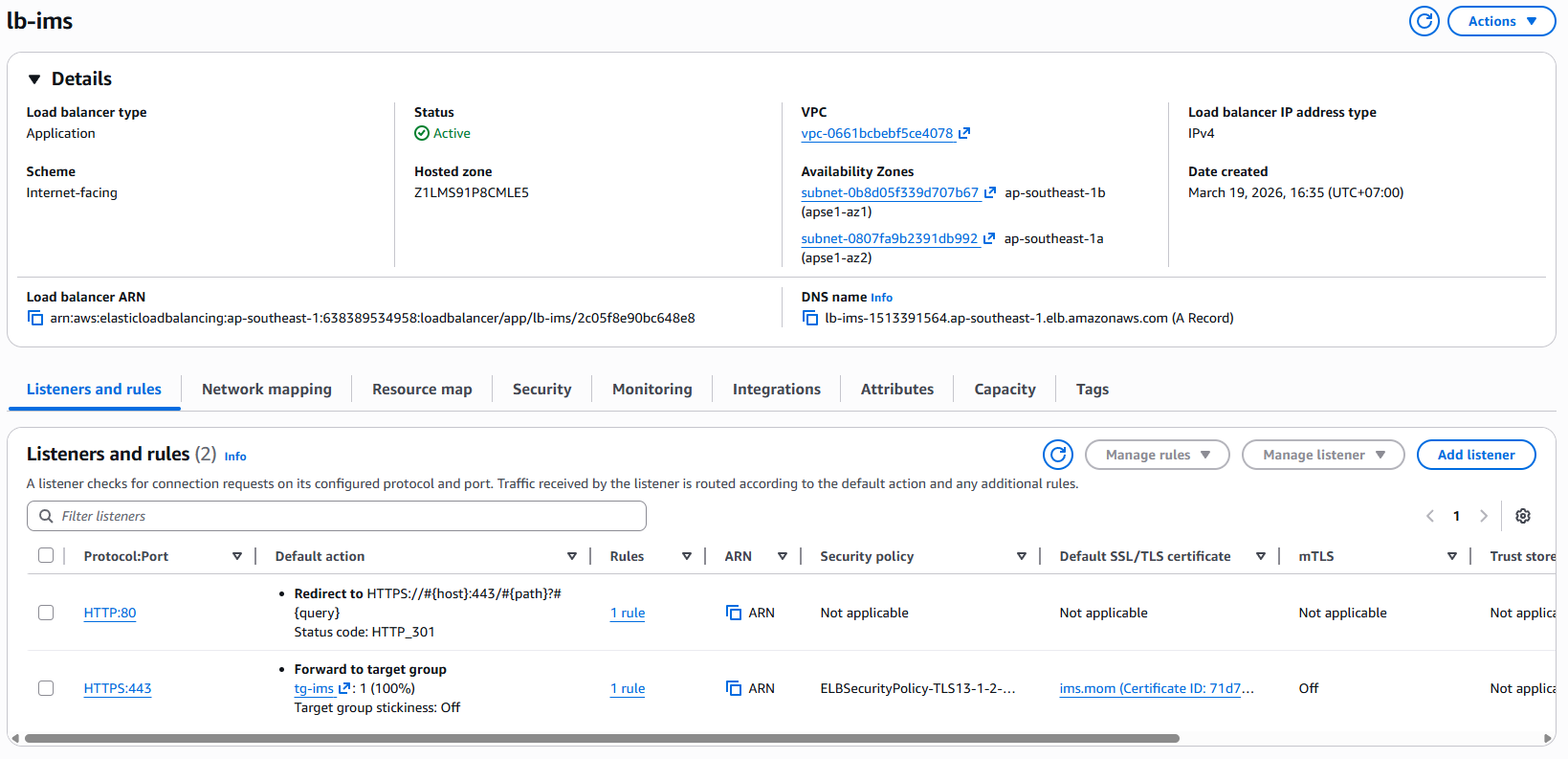

Application Load Balancer in public subnets routing traffic to ECS

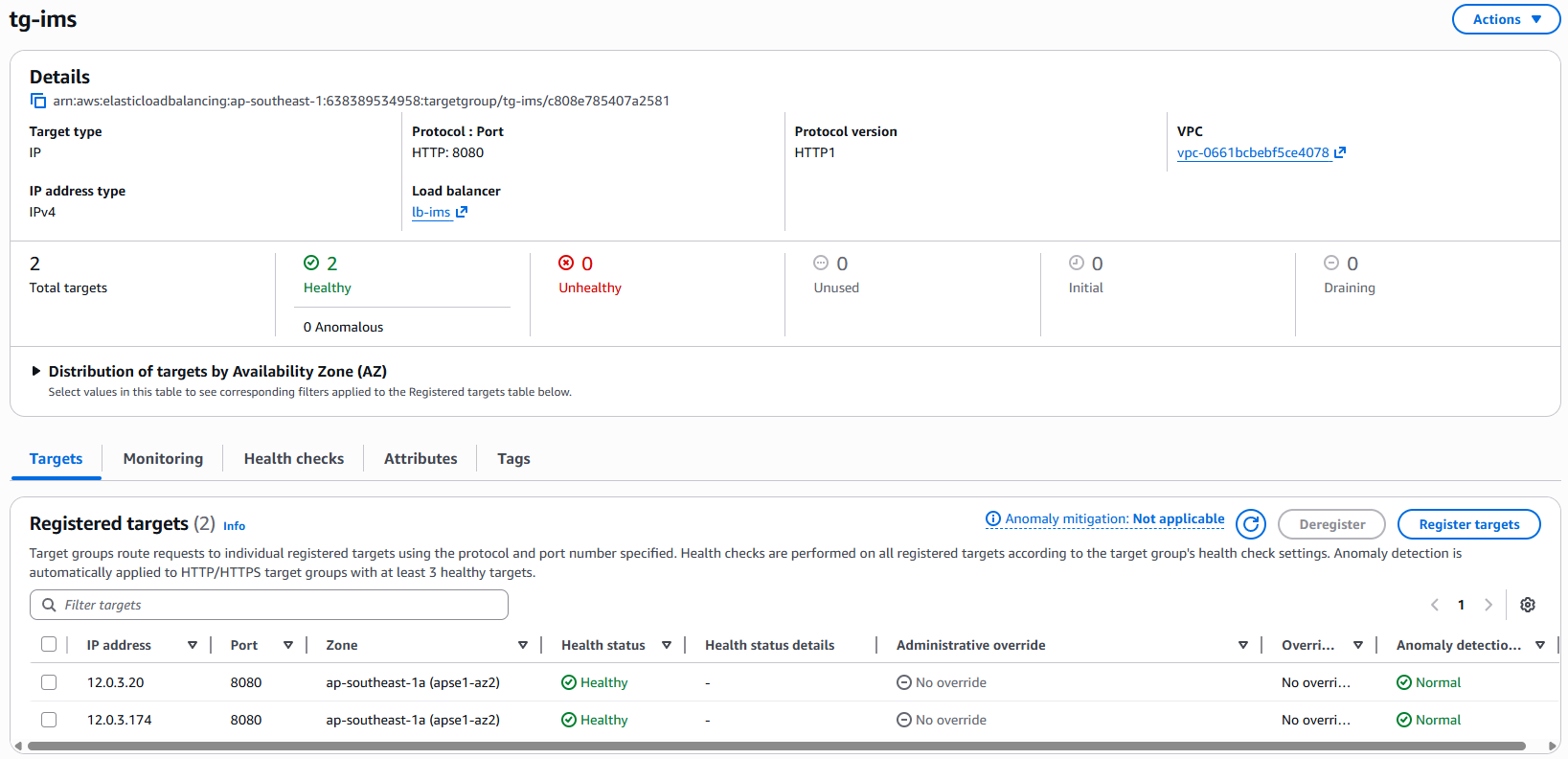

Target Group for ECS service behind ALB

These diagrams show how the ALB listens on public subnets and forwards traffic only to healthy ECS tasks in private subnets via the target group.

Network patterns

  • Start with access via the NAT gateway to public AWS endpoints.
  • Optionally, discuss VPC endpoints (S3, SQS, SNS, Secrets Manager, CloudWatch Logs) as a production-hardening step.

Workshop tasks

  • Attach private subnets to the ECS cluster and RDS subnet group.
  • Verify that ECS tasks can reach ECR, S3, SQS/SNS/SES, and Secrets Manager from private subnets.
  • Cross-check how this networking layer supports later modules: backend on ECS/RDS, messaging & notifications, security, and observability.
